Product Details
Product Name |

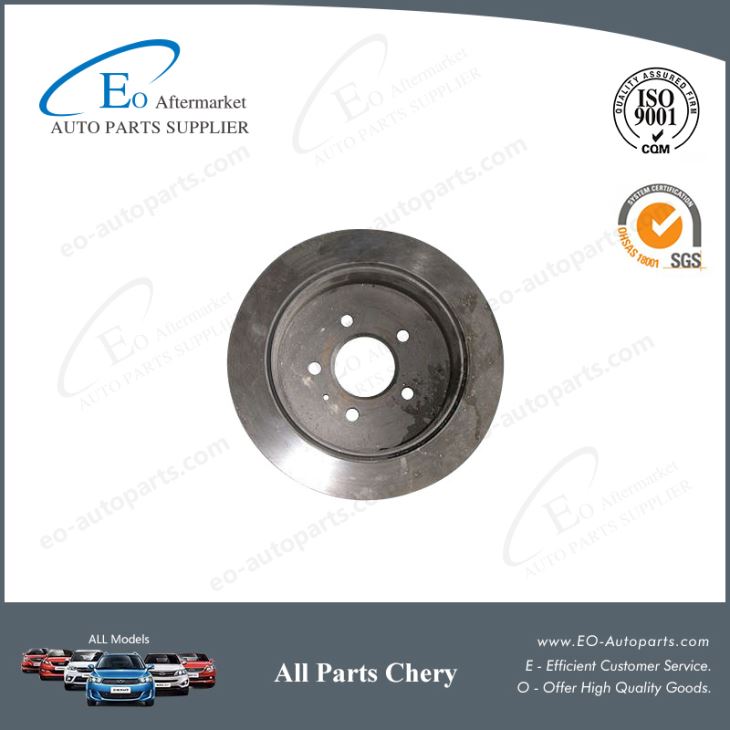

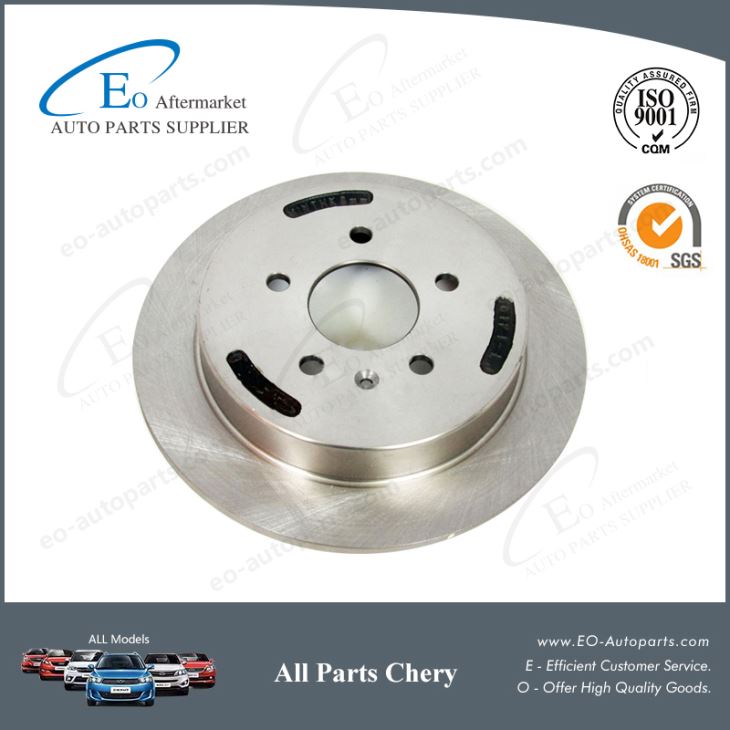

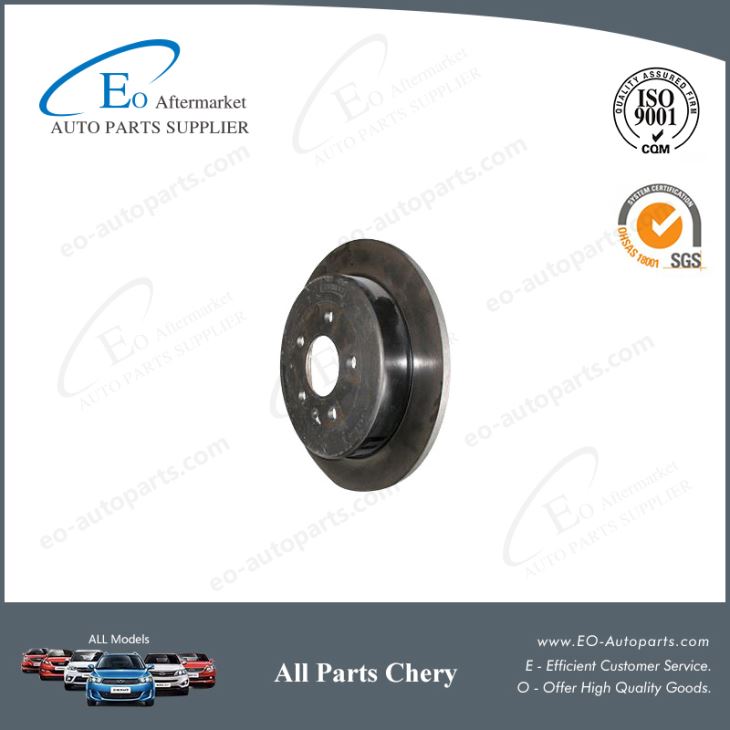

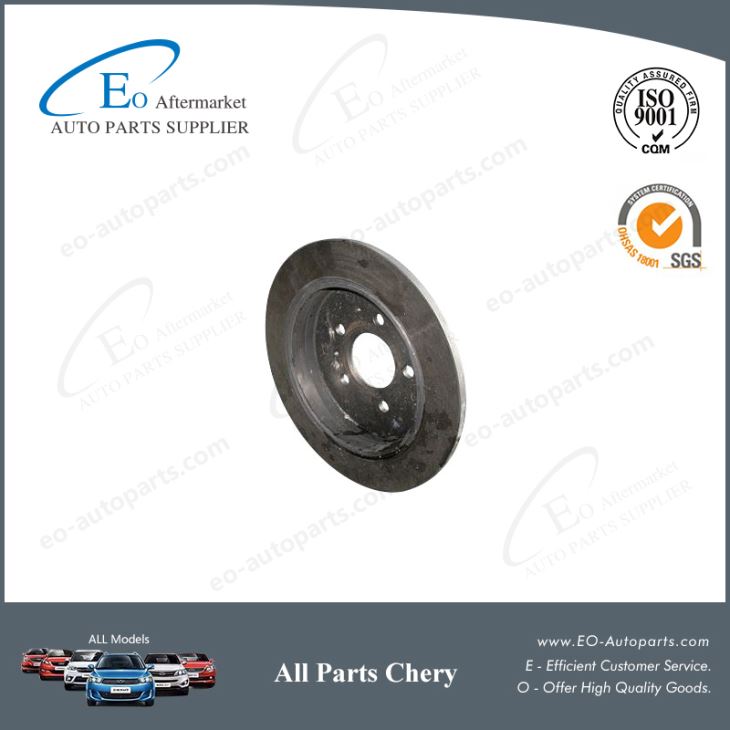

Brake rotors rear |
Size (mm) |
Standard Size |
Material |
Steel |
Car Application |
Chery M11 M12 |
Place of Origin |
China |
Delivery Port |
Dalian, Horgos |
Samples |
Charge |
Certification |
ISO9001/TS16949 |
1. Standard Exporting package
2. Original package or neutral package
3. According to clients ' needs
4. Shipped in10-35 days after payment
A. SASO for K.S.A
B. CIQ for Egypt, Ethiopia
C. COO, certified CI for Egypt, Argentina
D. Form A for European countries
E. Form E for Malaysia
F. Form F for Chile
G. COC for Algeria, Kenya, Bangladesh, Hatti, Nigeria
The so-called "brake disc end surface beating amount" is a key data indicating the flatness of the friction surface of the brake disc. According to the current processing technology of parts and vehicles and the requirements of vehicle use, the amount of beating of the brake disc end surface should not exceed 0.05mm . If this data exceeds the standard, it will make the contact pressure between the disk surface and the friction plate unevenly distributed during the braking process, resulting in fluctuation of the braking torque, which directly reflects the feeling to the driver and the car members is the brake jitter!
First of all, the brake disc to be reliably mounted to the hub bearing, some models of the brake disc has an independent positioning bolts, just tighten; and without bolt models, you need to install diagonal 2 to 3 Rim bolt (or nut)
Fix the dial gauge bracket to the shock absorber or steering knuckle and adjust the position of the bracket arm so that the dial gauge probe is placed approximately 10 mm from the edge of the brake disc.
Rotate the brake disc completely for at least one week. The fluctuation range of the dial indicator is the beat of the disc. This value should be less than 0.05mm (50μm).
As one of the leading manufacturers and suppliers in China, our distributors spread around the world. Please be free to wholesale the high quality brake disc rear m11-3502075 for chery skin m12 cielo j3 from our factory. Fast delivery and good after-sale service are available.
